Global shutter vs rolling shutter
On a highway, the subject is moving. The sensor readout decides whether the plate is evidence or a smear.
Rolling shutter
- Lines of the frame are read sequentially
- Fast vehicles, vibration and LED flicker warp geometry
- Plates skew, characters bleed, IR lighting can stripe the image
- Fine for parked cars and sidewalks
- Risky for 80 to 180 km/h corridors
Global shutter
- The whole frame is exposed at once
- Motion stays geometrically true
- Recon uses a 2 MP global shutter sensor
- Plate rectangles stay rectangular
- OCR sees characters as they were on the metal
Vision language models vs conventional analytics
Conventional analytics answer fixed questions. VLMs answer questions you have not hard-coded yet.
Video analytics
- Detectors and classifiers for a closed set
- Wrong-way, stopped vehicle, helmet, seatbelt
- Strong when the taxonomy is stable and training matches the site
- Weak for open-ended, rare or unlabelled attribute queries

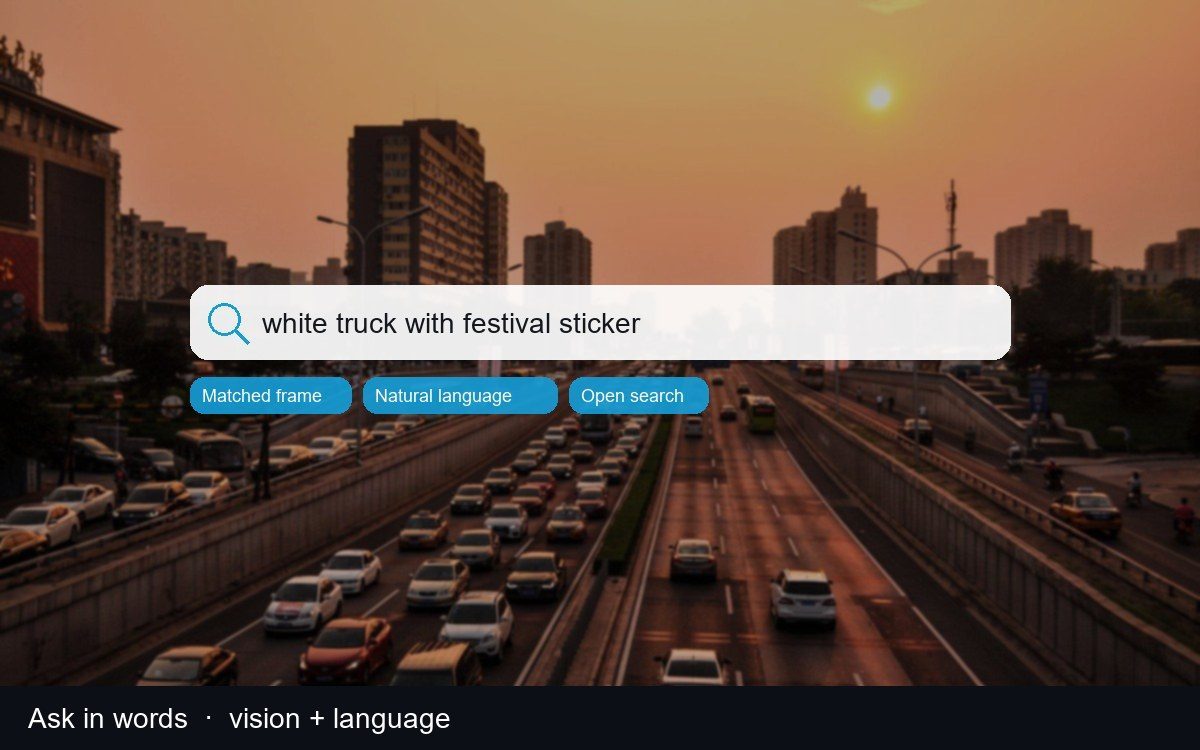

Vision language models
- Joint vision and language representations
- Ask in natural language: truck with a festival sticker, orange turban, CNG badge
- Structured events still run for tender line items
- Search and investigation open up on the same camera
Edge AI vs cloud AI
Latency, bandwidth, privacy and uptime decide where inference should live. Highways rarely forgive a round trip to a distant GPU.
Cloud AI
- Raw or lightly compressed video goes upstream
- Models run centrally for batch investigation and updates
- Costly when every gantry streams continuously
- Fragile when connectivity drops or milliseconds matter

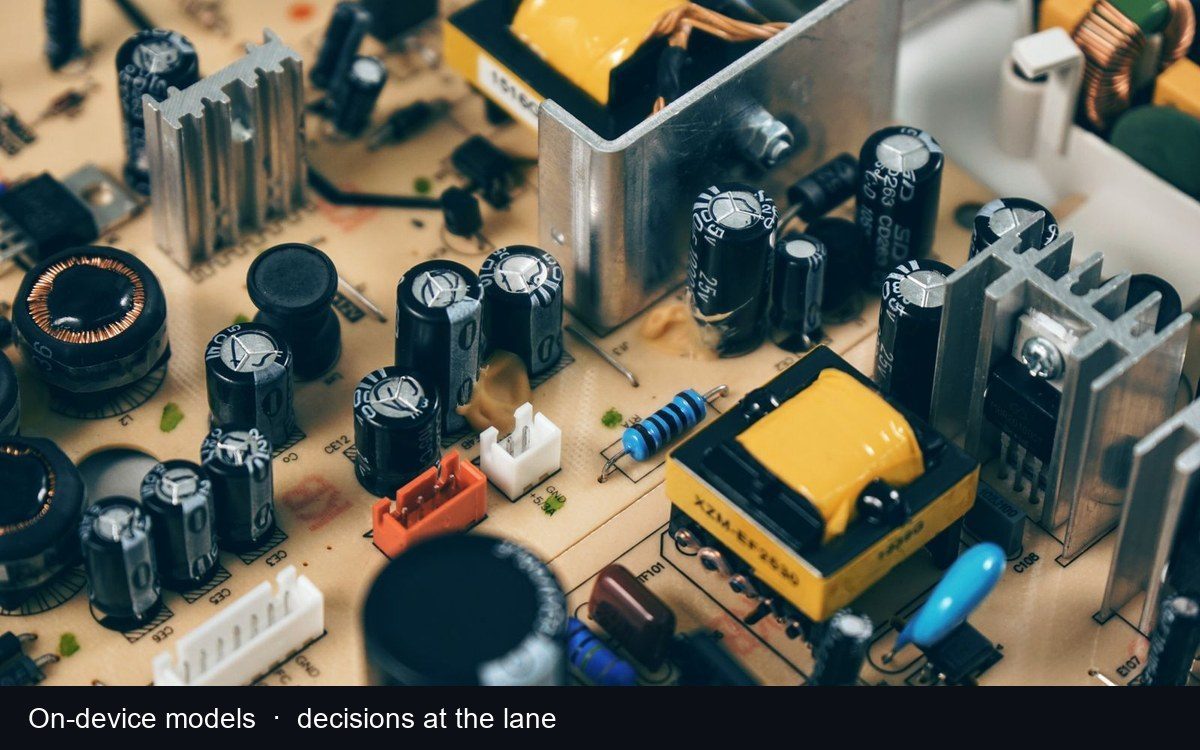

Edge-native AI
- Models run on the camera or roadside unit
- Events, evidence clips and metadata travel upstream
- Bandwidth collapses and privacy improves
- Local decisions survive WAN outages
ANPR accuracy methodology
Accuracy is a published number, not a claim. How you measure it decides whether a tender number means anything in the rain at 2 a.m.
Define the population
State vehicle population, speed band, lane geometry, day vs night, weather and plate types. A lab set of clean plates is not a monsoon gantry at dusk.
Separate the metrics
Plate localisation, character recognition and end-to-end read are different numbers. Publish which one you mean. End-to-end read rate is what operators feel.
Hold out field data
Evaluate on held-out corridors and times of day. Retrain on leakage and you invent accuracy. Iterate on field telemetry and republish when the distribution shifts.
Report conditions
Day, night, rain, fog, glare and density move the number. A single headline without conditions is marketing. Segmented reporting is engineering.
Evidence package
A correct read without a usable evidence image is incomplete for enforcement. Methodology includes capture quality, not OCR alone.
Certification context
STQC, BIS and NATRAX pathways constrain how products are tested for Indian deployments.
High-speed imaging
High-speed roads demand short exposure, enough light and a sensor that does not invent motion blur through readout.
Exposure vs light
Shorter exposure freezes motion but starves the sensor. Optics, IR illumination and global shutter must be co-designed so characters stay sharp without washing the plate.
Frame rate and concurrency
Recon is built to sustain high frame rate while running multiple analytics. High-speed imaging is useless if the pipeline drops frames when nine models are hot.
Radar and vision
Where speed enforcement combines radar and vision, imaging must keep the plate attachable to the measured vehicle under dense traffic. Timing and optics are systems work.
Field proof
NATRAX and corridor deployments are where high-speed claims meet asphalt. Lab benches do not vibrate like a gantry in crosswind.

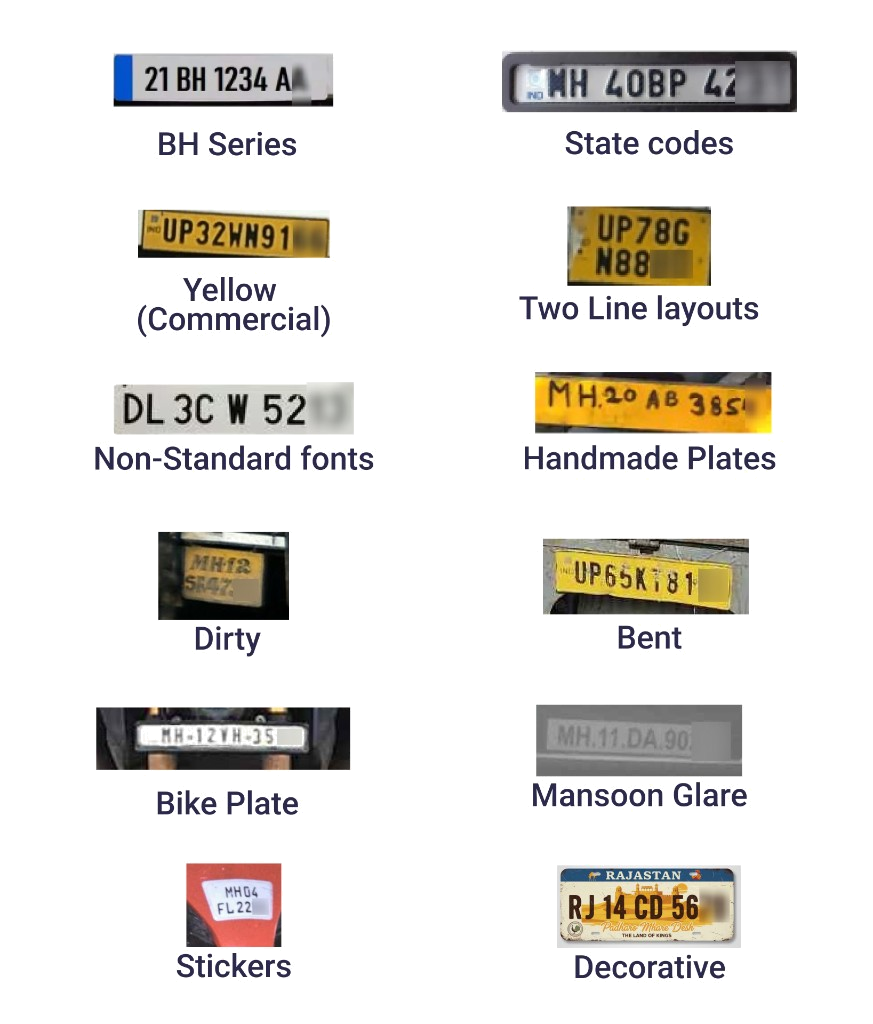

Indian plate challenges
India is not a cleaned European plate set. A stack that ignores local variation fails the first week on a real corridor.
- Formats and fonts BH series, state codes, two-line layouts, non-standard fonts and handmade plates all appear in the same hour of traffic.
- Condition and occlusion Dirt, bent plates, towbars, bike riders, stickers and decorative frames occlude characters. Models must tolerate partial evidence, not assume museum plates.
- Language and glyphs Latin characters dominate many plates, but regional scripts and mixed markings still show up. Training and evaluation must include what the corridor actually shows.
- Climate and lighting Monsoon glare, Himalayan fog, tropical heat haze and harsh IR at night change contrast. Illumination and exposure policy are part of plate science.
- Proving ground thesis A platform proven across Indian density and weather transfers outward more easily than a platform proven only on tidy lanes.
- VAHAN / NIC context Enforcement workflows often assume integration readiness. Plate read quality is upstream of any registry lookup.
ATMS architecture
Advanced Traffic Management Systems are not a single camera SKU. They are a layered system from gantry to command.
Sense
Edge cameras and sensors capture plates, classes, speeds and incidents with local context: lane role, thresholds, schedules.
Understand
On-camera models turn pixels into events. Deterministic detectors cover tender line items. VLMs extend search and explanation where needed.
Assemble evidence
Images, clips, timestamps, location and metadata form a package an operator or challan workflow can use.
Command
A corridor or city command layer aggregates health, events and proof across gantries. Operators prioritise and act without opening fifty video walls.
Integrate
Outputs feed ATMS software, enforcement back ends and partner systems through documented interfaces. ONVIF and registry integrations sit here when required.
Design as one
Optics, models and command schema must be designed together. Recon senses; VIDS / VSDS / ATCC / VIDES / MTES apply; EdgeTrack commands; AI Search investigates.
